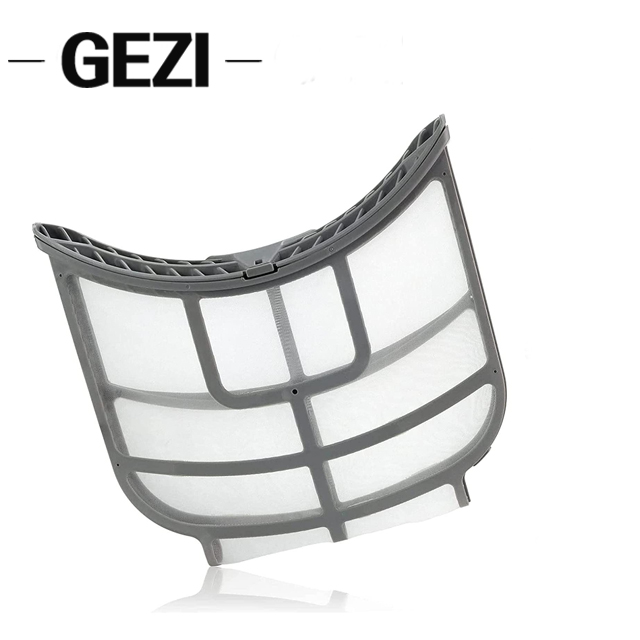

Washing machine filters or filter mesh: PP material, plain weave. Customized size and free samples

Washing machine filters or filter mesh: PP material, plain weave. Customized size and free samples

100% nylon, 100% polyester, PP, PA66 filter mesh:

GEZI is one professional manufacturer& supplier of Nylon/ PA 66/ Polyester/ and PP filter mesh

in China and with all available items and size to our customers.

We also produce the finished gas or liquid filters, such as coffee filters, tea filters, yogurt filter mesh, automotive fuel pump filters or filter mesh, automotive oil and gas separation filters or filter mesh, vacuum cleaner filters, washing machine filters or filter mesh , air conditioning filters or filter mesh,

dishwasher filter, food industry filter, etc. We have formed a high - medium screen, multi - variety, multi - specification, multi - material product production series.

1. GEZI filter mesh main specification and advantages:

1) Mesh item: 10- 500mesh

2) Width: 100cm, 127cm, 140cm, 145cm, 160cm, 165cm, 180cm as normal or customized size.

3）High material quality.

4）Corrosion resistance, wear resistance.

5）Long use life, smooth surface, high strength, strong elastic and good resilience.

2. GEZI screen products are made of the corresponding material of raw material wire, through physical processing, the product itself does not have antibacterial, anti-UV, anti-aging, anti-static, fire and other functions, if you need these functions, please contact us directly, we’ll do the post-processing of the mesh, to add the anti-bacterial, anti-UV, anti-aging, anti-static fire and so on.

The functions mentioned in the above function description are only tips for customers, referring to the screen after the corresponding deep processing of the finished product can have the corresponding function, does not refer to the screen itself (that is, the primary mesh) with these functions.

2.Some of the screen products of our company use food-grade raw materials, which can meet the needs of food grade and FDA products for food processing, and some industrial uses do not need food grade, please contact us for consultation if you need.

3. The products of our company can also be used in medicine, as well as part of medical treatment and testing, but they cannot be used directly. Customers need to make corresponding treatment according to their own needs, and then use, such as high-temperature disinfection and sterilization.

4. For food-grade products of GEZI, the food grade certificate of the screen itself is provided. For accessories purchased from outside, the corresponding food grade certificate may not be provided.

GEZI is specialized in the production of various PP, PET polyester, nylon nylon high temperature air purifier, anti-haze window screen, fresh air system filter screen.

At present, we cooperate with various manufacturers to provide the first effect filter screen mesh, support screen and other products for the air purifier products of Xiaomi, Gree, Midea and other brands.

This product is cut by laser to the specifications and shapes required by customers. Customers can be directly used with ABS frame for molding, it’s convenient and durable.

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP5	13	500	1450	56	1000	271
GZ-JPP6	15	400	1290	58	840	208
GZ-JPP8	20	350	920	52	645	212
GZ-JPP9	24	200	860	67	370	160
GZ-JPP9	24	250	810	60	460	145
GZ-JPP9	24	300	760	53	570	148
GZ-JPP10	25	250	766	56	530	195
GZ-JPP12	30	300	550	41	495	162
GZ-JPP14	35	200	525	52	380	234
GZ-JPP16	40	200	435	46	400	139
GZ-JPP16	50	250	260	36	420	217
GZ-JPP17	42	200	405	44	380	198
GZ-JPP18	45	220	340	37	400	180
GZ-JPP20	50	200	308	36	375	173
GZ-JPP24	60	150	270	41	305	117
GZ-JPP28	70	150	213	34	278	87
GZ-JPP30	76	120	214	41	230	94

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP32	80	100	217	46	240	69
GZ-JPP36	90	100	182	41	195	78
GZ-JPP40	100	100	154	36	192	87
GZ-JPP44	110	100	131	31	175	62
GZ-JPP48	120	80	132	38	150	65
GZ-JPP56	142	60	119	44	110	44
GZ-JPP59	150	60	110	42	98	46
GZ-JPP64	163	60	96	38	120	51
GZ-JPP72	183	50	89	41	90	38
GZ-JPP80	203	50	75	36	93	43
GZ-JPP88	224	40	74	42	65	32
GZ-JPP96	244	40	64	38	76	34
GZ-JPP100	254	40	60	36	78	35
GZ-JPP104	264	40	56	34	79	36
GZ-JPP120	305	40	43	27	80	42
GZ-JPP130	330	40	37	23	75	44
Remark: The above datails are theoretic, please be reference.

Washing machine filters or filter mesh are important components that help to maintain the efficiency and performance of washing machines. They are designed to capture and remove various types of debris and contaminants from the water used during the washing process. Here are some applications of washing machine filters or filter mesh:

1.Lint and Fabric Filtration: One of the primary purposes of washing machine filters is to capture lint and fabric fibers that are released from clothing during the washing cycle. These filters prevent the lint from clogging the drainage system and help to keep it clear, allowing for proper water flow.

2.Sediment and Dirt Removal: Washing machine filters are effective in capturing sediments and small particles of dirt that may be present in the water supply. These filters help prevent the accumulation of debris on clothes and within the washing machine, resulting in cleaner laundry.

3.Protecting the Washing Machine: Filters play a crucial role in protecting the internal components of the washing machine from damage caused by debris and contaminants. By capturing particles and preventing them from reaching sensitive parts like pumps, valves, and nozzles, filters help to prolong the lifespan of the washing machine.

4.Water Quality Improvement: In areas with hard water or high mineral content, washing machine filters can help to improve water quality. They can capture minerals, sediments, and other impurities, preventing them from depositing on clothes and leaving behind residue or stains.

5.Preventing Drainage Issues: Filters help to prevent clogs and blockages in the drainage system by capturing lint, debris, and foreign objects. This ensures smooth water flow and prevents potential problems such as overflowing or slow draining.

6.Energy Efficiency: Clean filters in washing machines contribute to improved energy efficiency. When filters are clogged or dirty, it can affect the performance of the machine, leading to longer wash cycles and increased energy consumption. By maintaining clean filters, the washing machine can operate at its optimal efficiency.

7.Maintenance and Care: Washing machine filters require regular cleaning or replacement as part of routine maintenance. By properly maintaining the filters, you can ensure the continued performance of the washing machine and prevent issues that may arise from neglected filters.

In summary, washing machine filters or filter mesh are essential components that capture lint, debris, sediments, and other contaminants from the water used in the washing process. They protect the washing machine, improve water quality, prevent drainage issues, enhance energy efficiency, and contribute to proper maintenance and care of the appliance.
