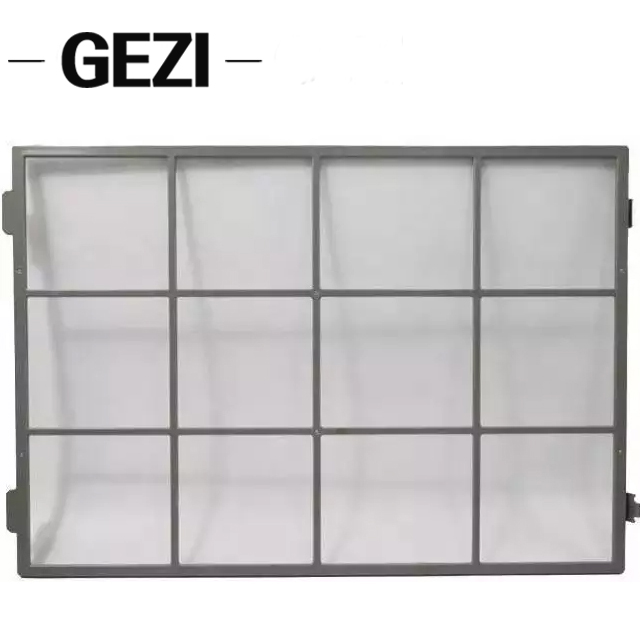

Air Condition Filter Mesh: white fine nylon mesh, normal width size is 1.7m

Air Condition Filter Mesh: white fine nylon mesh, normal width size is 1.7m.

Package

1.30-70m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

Delivery time

15-25days

Application

The case, central air-conditioning, window air filter, lampblack machine, ventilating system, air conditioner etc.

It’s used for air filtration and dust prevention of air conditionning and other air vents.

Filter Mesh specification sheet.pdf

100% nylon, 100% polyester, PP, PA66 filter mesh:

GEZI is one professional manufacturer& supplier of Nylon/ PA 66/ Polyester/ and PP filter mesh

in China and with all available items and size to our customers.

We also produce the finished gas or liquid filters, such as coffee filters, tea filters, yogurt filter mesh, automotive fuel pump filters or filter mesh, automotive oil and gas separation filters or filter mesh, vacuum cleaner filters, washing machine filters or filter mesh , air conditioning filters or filter mesh,

dishwasher filter, food industry filter, etc. We have formed a high - medium screen, multi - variety, multi - specification, multi - material product production series.

1. GEZI filter mesh main specification and advantages:

1) Mesh item: 10- 500mesh

2) Width: 100cm, 127cm, 140cm, 145cm, 160cm, 165cm, 180cm as normal or customized size.

3）High material quality.

4）Corrosion resistance, wear resistance.

5）Long use life, smooth surface, high strength, strong elastic and good resilience.

2. GEZI screen products are made of the corresponding material of raw material wire, through physical processing, the product itself does not have antibacterial, anti-UV, anti-aging, anti-static, fire and other functions, if you need these functions, please contact us directly, we’ll do the post-processing of the mesh, to add the anti-bacterial, anti-UV, anti-aging, anti-static fire and so on.

The functions mentioned in the above function description are only tips for customers, referring to the screen after the corresponding deep processing of the finished product can have the corresponding function, does not refer to the screen itself (that is, the primary mesh) with these functions.

2.Some of the screen products of our company use food-grade raw materials, which can meet the needs of food grade and FDA products for food processing, and some industrial uses do not need food grade, please contact us for consultation if you need.

3. The products of our company can also be used in medicine, as well as part of medical treatment and testing, but they cannot be used directly. Customers need to make corresponding treatment according to their own needs, and then use, such as high-temperature disinfection and sterilization.

4. For food-grade products of GEZI, the food grade certificate of the screen itself is provided. For accessories purchased from outside, the corresponding food grade certificate may not be provided.

GEZI is specialized in the production of various PP, PET polyester, nylon nylon high temperature air purifier, anti-haze window screen, fresh air system filter screen.

At present, we cooperate with various manufacturers to provide the first effect filter screen mesh, support screen and other products for the air purifier products of Xiaomi, Gree, Midea and other brands.

This product is cut by laser to the specifications and shapes required by customers. Customers can be directly used with ABS frame for molding, it’s convenient and durable.

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP5	13	500	1450	56	1000	271
GZ-JPP6	15	400	1290	58	840	208
GZ-JPP8	20	350	920	52	645	212
GZ-JPP9	24	200	860	67	370	160
GZ-JPP9	24	250	810	60	460	145
GZ-JPP9	24	300	760	53	570	148
GZ-JPP10	25	250	766	56	530	195
GZ-JPP12	30	300	550	41	495	162
GZ-JPP14	35	200	525	52	380	234
GZ-JPP16	40	200	435	46	400	139
GZ-JPP16	50	250	260	36	420	217
GZ-JPP17	42	200	405	44	380	198
GZ-JPP18	45	220	340	37	400	180
GZ-JPP20	50	200	308	36	375	173
GZ-JPP24	60	150	270	41	305	117
GZ-JPP28	70	150	213	34	278	87
GZ-JPP30	76	120	214	41	230	94

Spec.	Mesh count	Wire diameter	Aperture	Opening rate	Thickness	Weight (g/sqm)
GZ-JPP32	80	100	217	46	240	69
GZ-JPP36	90	100	182	41	195	78
GZ-JPP40	100	100	154	36	192	87
GZ-JPP44	110	100	131	31	175	62
GZ-JPP48	120	80	132	38	150	65
GZ-JPP56	142	60	119	44	110	44
GZ-JPP59	150	60	110	42	98	46
GZ-JPP64	163	60	96	38	120	51
GZ-JPP72	183	50	89	41	90	38
GZ-JPP80	203	50	75	36	93	43
GZ-JPP88	224	40	74	42	65	32
GZ-JPP96	244	40	64	38	76	34
GZ-JPP100	254	40	60	36	78	35
GZ-JPP104	264	40	56	34	79	36
GZ-JPP120	305	40	43	27	80	42
GZ-JPP130	330	40	37	23	75	44
Remark: The above datails are theoretic, please be reference.

The air conditioner filter mesh, or HVAC filter mesh, serves various applications in air conditioning systems. Here are some common applications of air conditioner filter mesh:

1.Particle Filtration: The primary function of the filter mesh in an air conditioner is to capture and remove airborne particles from the circulating air. The mesh is designed to trap dust, pollen, pet dander, mold spores, and other pollutants, preventing them from entering the conditioned space.

2.Indoor Air Quality Improvement: By effectively capturing and removing particles from the air, the filter mesh helps improve indoor air quality. It reduces the presence of allergens, irritants, and other harmful substances, creating a healthier and more comfortable indoor environment.

3.Equipment Protection: The filter mesh acts as a barrier, preventing dust and debris from accumulating on the HVAC equipment components. By keeping the system clean, it helps protect the equipment from damage, improves its efficiency, and extends its lifespan.

4.Energy Efficiency: A clean and properly functioning air conditioner filter mesh promotes energy efficiency. When the filter is clogged with dirt and debris, it restricts airflow, making the system work harder and consume more energy to maintain the desired temperature. Regularly replacing or cleaning the filter mesh helps maintain optimal airflow and reduces energy consumption.

5.Contaminant Control: In certain environments or industries where specific contaminants need to be controlled, specialized filter meshes can be used in air conditioning systems. For example, in hospitals or laboratories, high-efficiency particulate air (HEPA) filters with fine mesh are employed to capture and remove airborne pathogens or hazardous particles.

6.Odor Control: Some filter meshes are designed with activated carbon or other odor-absorbing materials. These filters help remove unpleasant odors from the air, such as cooking smells, tobacco smoke, or volatile organic compounds (VOCs).

It's important to note that the specific application and effectiveness of an air conditioner filter mesh can vary depending on its design, material, and filtration efficiency. Different air conditioning systems may require different types of filters to address specific air quality concerns or system requirements. Regular maintenance and filter replacement are crucial to ensure optimal performance and air quality in an air conditioning system.
